Nora Lighting NM4-R47027BB 4" M4 Round LED Adjustable Elbow, 950lm / 12W, 2700K, 120V, Matte Black

Details of the Nora Lighting NM4-R47027BB 4" M4 Round LED Adjustable Elbow, 950lm / 12W, 2700K, 120V, Matte Black

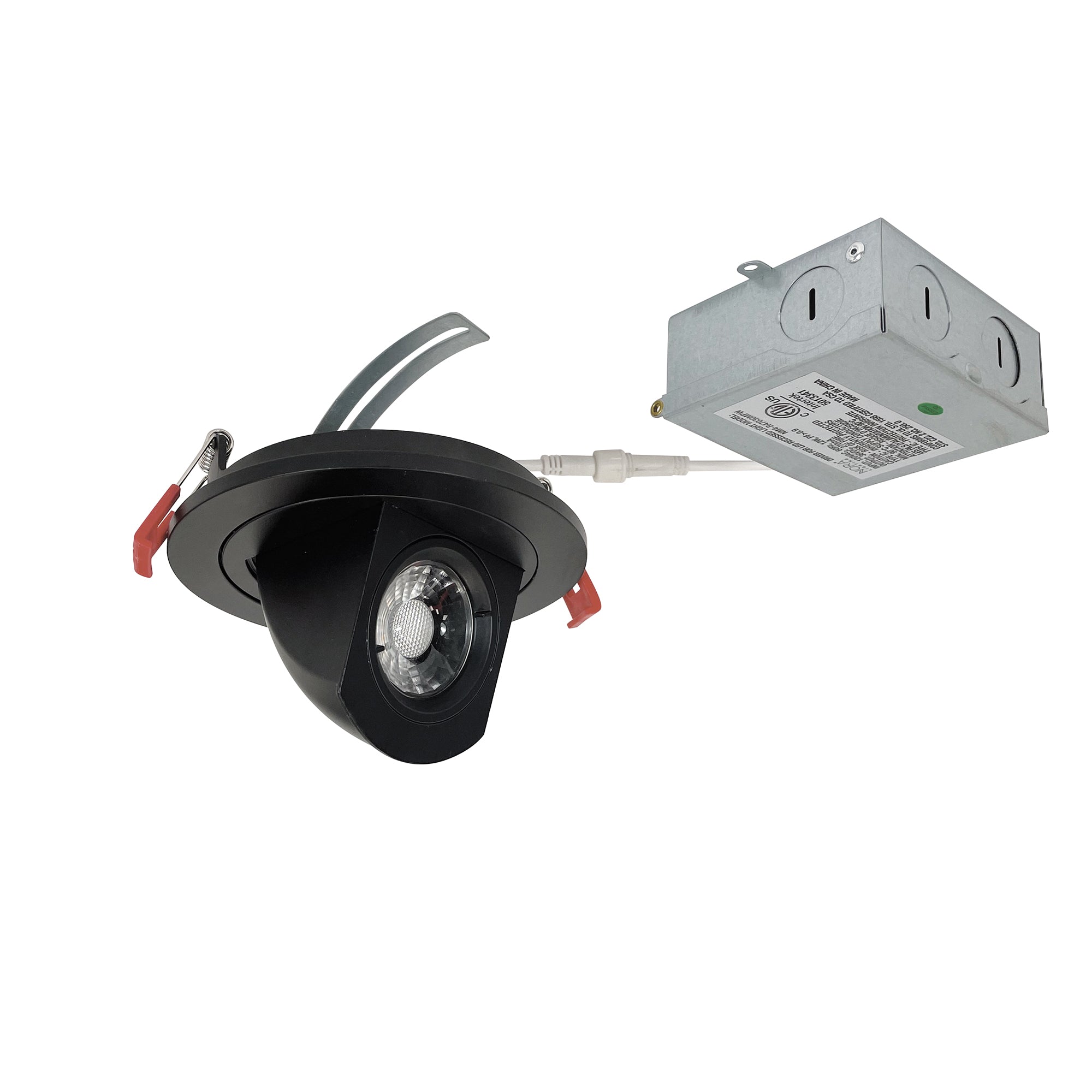

4" M4 Round LED Elbow downlight features an adjustable head that extends 75° and rotates 300° for precise aiming. Quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into square trim with accessory. Adjustment: 75° vertical / 300° horizontal Input Voltage: 120V Lumens / Wattage: 950lm / 12W CCT / CRI: 2700K / 90 CRI Finish: Matte Black Dimming: Triac or ELV Optics: 25° Spot (included) and 38° Narrow Flood (installed) Square Trim: NM4-SET ordered separately Accessories: Extension cables and new construction frame available Listing: cETLus Listed for Damp Locations

Features

• 75° Adjustable
• No housing required “ IC Air-Tight rated
• Easy installation for remodel or new construction applications
• Quick disconnect cables allow for extended lengths
• Triac or ELV dimming
• 5-year limited warranty
• Certified to the high efficacy requirements of California Title 24 JA8-2022

Specification

• Brand: Nora Lighting
• SKU: NM4-R47027BB
• UPC: 732180817771
• Product Line: LE94
• Product Family: M4
• Product Type: Recessed
• Color Temperature: 2700K
• Wattage: 12W
• Lumens: 950lm
• CRI: 90
• Product Dimensions (W x H x L): 5.5 x 3.5 x 17
• Finish Color: Black
• Product Weight (lb): 1.2

Accessories:

• NM4-SET: Square Trim

• NF-R246: Universal New Construction Frame-In

• NFC-R275: New Construction Frame-In with Collar

• NM2-EW-4: 4² Quick Connect Extension Cable

• NM2-EW-10: 10² Quick Connect Extension Cable

Photometric Layout
