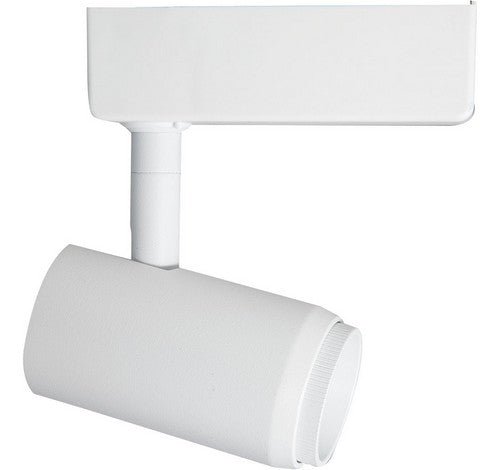

ELCO Lighting ET756DW Angler Contemporary LED Small Track Lighting Kit 120V - White Finish

LED Angler Track Fixture

FEATURES :

Diecast adjustable beam track fixture.
Integrated driver
90° vertical adjustment, 358° rotation.
50,000 hours life-span.
18° - 50° adjustable beam angle.
Use with ELCO 120V Single or Double Circuit Track.

SPECIFICATIONS :

Wattage 15W
Lumens 1000 lm
Voltage 120V
Color Temp. 3000K
Dimmable Triac
Lamp Type LED
Beam Angle 18°-50°
CRI 90+

Construction: Full diecast construction for exceptional heat management and lasting quality. Powder coat architectural white and architectural black matte finishes.

Adjustability: Track head is adjustable 180° vertically with 358° rotation.

Optics: Lens provides smooth lumen output at standard 38°.

Installation: Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double circuit track. Can be ordered as J-Style or L-Style.

LED Technology:
Extremely accurate Color Rendering Index of 93+ CRI
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results
Instant On to Full Brightness technology
Chip on Board LED design results in a smooth lumen output with no LED pixelation

Dimmability:
Triac and ELV dimmable down to 10%
Flicker-Free Dimming
For full list of dimmers refer to the Dimmer Compatibility List

Electrical:
Driver is rated for 120V input
High Efficiency driver with a power factor > 0.9

Listings:
ETL Listed
RoHS Compliant

Warranty: ELCO Products are built to last. 5-year Limited warranty.
