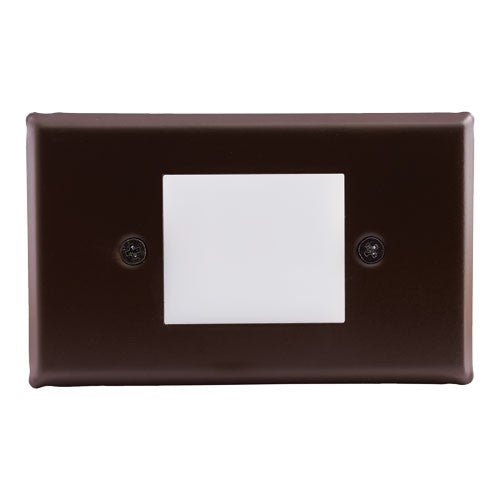

ELCO Lighting ELST76BZ Mini LED Step Light with Frosted Acrylic Lens 0.8W 3000K 12V - Bronze Finish

Mini LED Step Light with Frosted Acrylic Lens

FEATURES :

• Vertical or Horizontal Mounting.

• Galvanized stamped steel housing.

• Powder coated faceplate.

• Integrated LED board and driver.

• Mounts in a standard single gang box.

• Life span of 35,000 hours L70.


SPECIFICATION :

• Wattage 0.8W

• Voltage 120V or 12V

• Color Temp. 3000K

• Lamp Type LED

• CRI 90+

• Wet Location Listed

Optics:
Acrylic lens diffuses light to illuminate walkway.

Construction:
Stamped galvanized steel housing with smooth powder coat finish faceplate. LED Box with
bracket for installation. Phillip screws hold faceplate to box.

Installation:
Easily installs into a standard single gang switch box. Includes installation hardware and
bracket.

Electrical:
Ambient operating temperature -23°F (-5°C) to 113°F (45°C).
120V ELST66: Driver input of 120V 50/60Hz connects directly to line voltage power.
12V ELST76: Input of 12V requires an external transformer.

LED Technology:
90+ CRI for extremely accurate color rendering.
Lumen Maintenance of 35,000 hours L70 Life.
12 LED array.

Listings:
UL and cULus Listed for Wet Location.
