  • Brand: Siemens
  • Product No: MC3042S1400FC

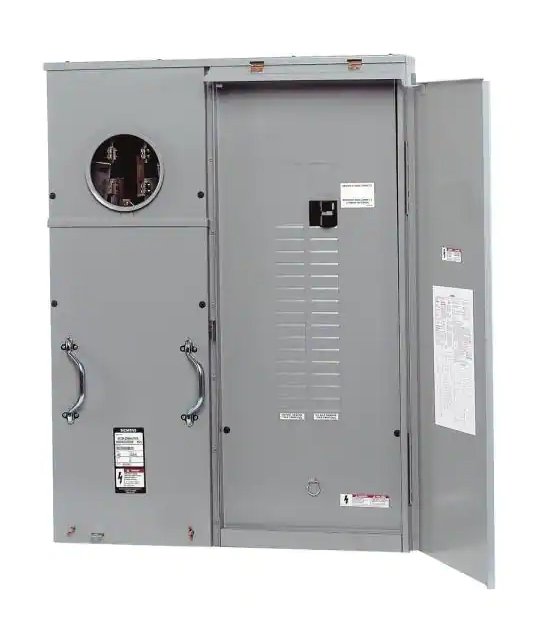

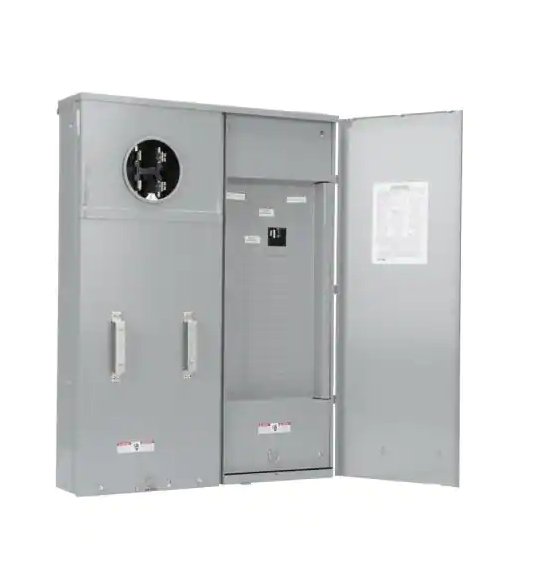

Siemens MC3042S1400FC 400-Amp 30-Space 42-Circuit Flush Mount OH/UG Feed Meter Load Center Combination

$2,450.00

Pickup available at Sonic Distribution Center

Usually ready in 2-4 days

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Siemens Meter Main and Meter Load Center Combinations provide a full range of Metering Products that are built for safety ease of installation and long term quality. A Meter Main is a device that provides a meter socket and a main breaker, a meter combination load center provides a socket, main breaker and load center interior. Siemens has also introduced a line of Solar Ready Meter Combination Load Centers. These combos feature a cost effective construction that is preferable in non-EUSERC areas.

  • A powder coating of polyester paint using electrostatic process further enhances corrosion protection and gives a great looking finish, free of drips and runs
  • Siemens meter load center combinations offer several different configurations and include a meter socket section and a load center section
  • Meter-load center combination is 400 Amp 30 space 40 circuit underground fed surface mount plug-in ring
  • Underground feed only
  • Pad locking provisions on all devices
  • 22,000 AIC rated
  • Side hinge door removable by backing out only one screw, suitable for use only as service entrance equipment
  • QN2200RH factory installed main breaker - for field installed main breaker use type QP (H) or QNR (H)
  • Check with local utility to confirm meter socket approval

Specifications

Dimensions

Load center depth (in.) 8.5 Load center height (in.) 41.1
Load center width (in.) 42.3

Details

Electrical Product Type Load Center Indoor/Outdoor Outdoor
Load Center Mounting Type Flush
 Load Center Type Combination
Maximum Amperage (amps) 400 Meter Socket Type Ring
Mounting Type Bolt On NEMA Configuration NEMA 3R
NEMA Configuration Receptacle No Receptacle Number of Circuits 42
Number of Gangs 0 Number of Spaces 30
Phase Type 1 Phase Product Weight (lb.) 145 lb
Returnable 30-Day Voltage (volts) 240

Warranty / Certifications

Certifications and Listings UL Listed Manufacturer Warranty 1 Year


Siemens Description
  • SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. PHOTOVOLTAIC (SOLAR) LOAD CENTER 30 (1 INCH) SPACES INTERIOR ALLOWING MAX 42 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 400A. SPECIAL FEATURES: OH/UG FEED, RING TYPE COVER, FLUSH MOUNTING
  • 200A Max Solar Input Meter-Load Center Combinations
  • 1-Phase, 3-Wire, 120/240V AC
  • EUSERC and CA Title 24 Compliant Meter-Load Center Combination
  • 400 amp, Up to 200 amp alternate energy Input
