| Category | PIPE FITTING |
| Page | D14 |
| Description: | |

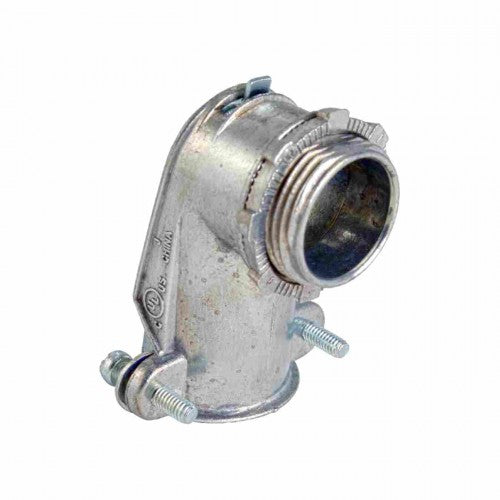

| Orbit Industries 90° angle squeeze type AC (BX)/MC connectors are used in dry locations to bond flexible metal conduit to a box or enclosure. Orbit Industries squeeze connectors have a rugged metallic construction and they are durable. The rugged construction ensures mechanical protection for the raceway. | |
| Features: | |
| - Zinc Die Cast - For AC, MCI-A, FMC/RWFMC |
|
| Cable Range: | |
|
OF643: - Steel AC: 14/2 (0.453") - 8/2 (0.647") - AL AC: 14/2 (0.453") - 10/4 (0.622") - Steel MCI-A: 14/2 (0.453") - 8/2 (0.669") - AL MCI-A: 14/2 (0.453") - 10/4 (0.646") - Steel/AL FMC/RWFMC: 3/8" |
|
|
OF644: - Steel AC: 10/4 (0.648") - 8/3 (0.826") - AL AC: 10/4 (0.622") - 6/4 (0.905") - Steel MCI-A: 10/4 (0.622") - 6/3 (0.866") - AL MCI-A: 10/4 (0.646") - 6/4 (0.937") - Steel/AL FMC/RWFMC: 1/2" |
|
|
OF645: - Steel AC: 6/4 (0.945") - 3/4 (1.185") - AL AC: 6/4 (0.925") - 2/4 (1.133") - Steel MCI-A: 8/4 (0.827") - 3/4 (1.185") - AL MCI-A: 8/4 (0.827") - 3/4 (1.185") - Steel/AL FMC/RWFMC: 3/4" |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310658 | |
| CAT NO | UPC | KO SIZE | STD PKG | MASTER CTN |
| OF643 | 8-35243-04999-4 | 1/2" | 25 | 250 |
| OF644 | 8-35243-05000-6 | 1/2" | 25 | 250 |
| OF645 | 8-35243-05001-3 | 3/4" | 25 | 250 |
