Which Circuit Breaker Fits the Siemens WEPK4212 Meter Center?

Choosing the Right Breaker for the Siemens WEPK4212 Meter Center (Uni-PAK)

If you own, install, or service a Siemens WEPK4212 meter center, selecting the correct circuit breaker is critical for safety, code compliance, and maintaining the UL listing. While there’s a lot of conflicting advice online about whether QN, QP, or QS breakers fit this model, the manufacturer’s documentation is very clear.

Here’s a straightforward, accurate guide for electricians, contractors, and property managers.

Why Breaker Compatibility Matters

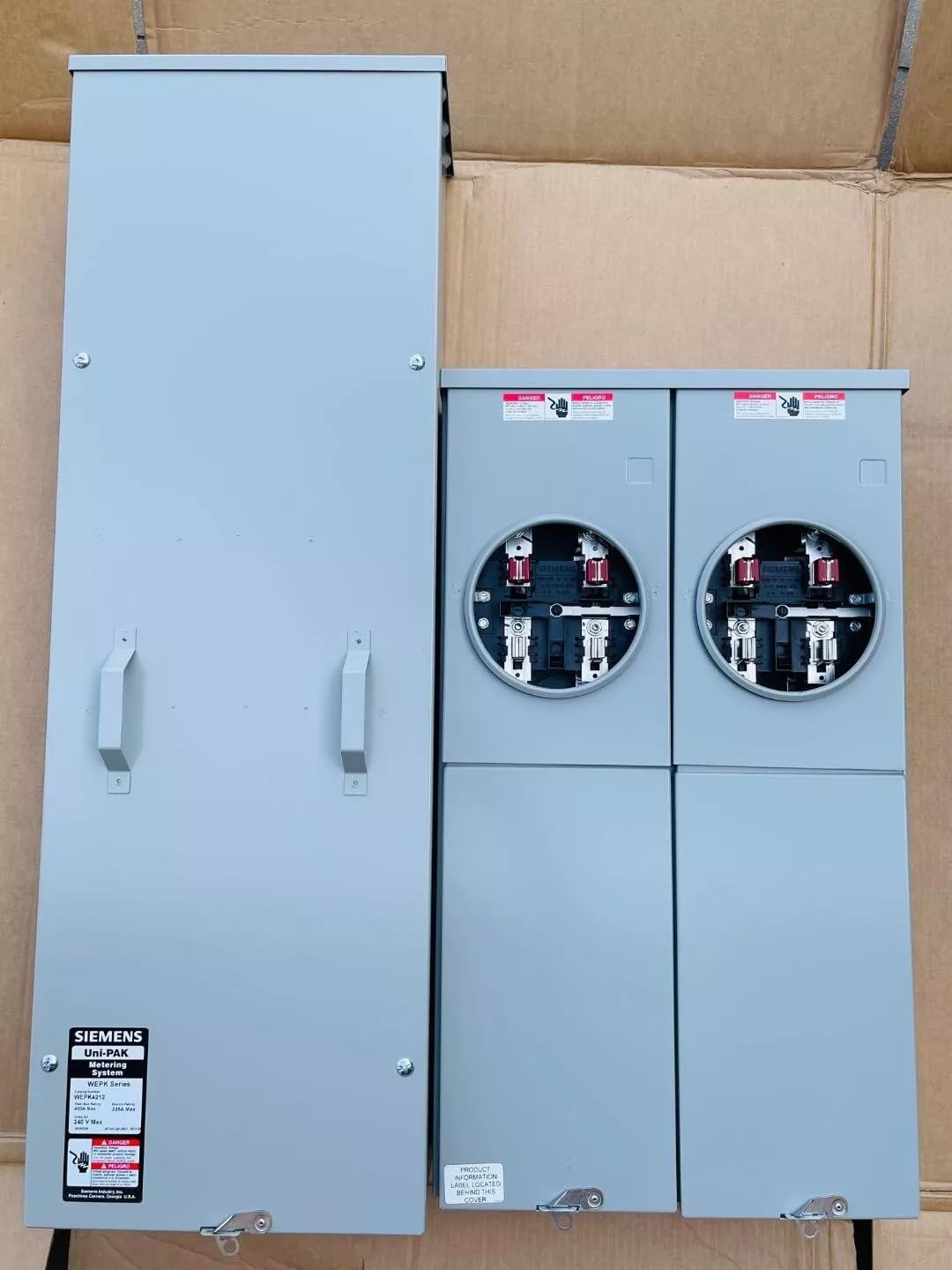

The WEPK4212 is a UL-listed assembly (400 A, 2-gang, 1-phase, EUSERC, NEC 2020 compliant). Installing a breaker not approved by Siemens can:

Void the UL listing
Void the warranty
Create a potentially unsafe installation
Cause failed inspections and expensive rework

Always verify the approved breaker types directly from the factory label or official documentation for your specific model.

Siemens WEPK4212 Approved Breaker Types

According to the official wiring diagram and product label for the WEPK4212, you may only use the following Siemens breaker families:

QN, QNH, QNHH
HQN
QP, QPH, HQP, HQPH
MP-T, MP-HT, MP-MT

Siemens explicitly states: “Use of other circuit breakers in this device will void the warranty.”

These families have been tested and certified for use in the WEPK4212 enclosure. Common applications include:

Tenant main breakers (up to 225 A per position)
Branch circuit breakers

Always choose the correct ampere rating based on your load, utility requirements, and the position’s rating (usually 150 A or 225 A).

Common Part Number Examples

Here are the breakers most frequently used in the WEPK4212:

QN2200 — 200 A, 2-pole, standard-handle QN main breaker (very common for tenant positions)
QN2200R — 200 A, 2-pole, reverse-handle version of the QN breaker
QS2200 — 200 A, 2-pole, compact side-wired QS breaker (popular in Uni-PAK meter centers for easier wiring in tight spaces)
QP2200 or QPH2200 — 200 A QP-series alternatives when a standard plug-in breaker is preferred

Will a QN2200R work? Yes — it is fully compatible. The “R” simply stands for reverse handle. Siemens designed the QN2200R specifically for horizontal or meter-main applications (like the WEPK4212) so the handle orientation matches the enclosure layout and door clearance. Because it is still a Type QN breaker, it falls directly under the approved families listed on the wiring diagram.

Installation Tips for the WEPK4212

Follow these steps to ensure a safe, code-compliant install:

De-energize the system — Turn off the upstream power and verify with a voltage tester before touching anything.
Locate the factory label — It is usually on the inside of the door or deadfront and lists every approved breaker type.
Seat the breaker correctly — Align the breaker with the bus stabs and press firmly until it snaps and locks into place. Do not force it.
Torque all terminals — Follow the exact torque values printed on the breaker label or in the WEPK4212 wiring diagram (common range for these breakers is 35–50 in-lbs; confirm your specific model).
Use proper conductors — Only 60/75°C copper or aluminum wire as marked on the enclosure and breaker terminals.
Check wire size and ampacity — Match to the breaker rating and local utility requirements.
Label everything — Clearly mark the new breaker and update the directory.
Test before closing — Restore power and verify the breaker operates smoothly with no unusual heat or tripping.

Pro tip: Many installers prefer the QN2200R in the WEPK4212 because the reverse handle or side-wiring design makes future service easier in the compact meter-main layout.

How to Double-Check Before Installing

Open the WEPK4212 and locate the factory label (usually on the inside of the door or deadfront).
Match the breaker family letters exactly (e.g., QN, QP, MP-T).
Confirm the ampere rating, voltage, and interrupting rating meet your local code and utility service requirements.
When in doubt, download the latest wiring diagram (SIE_WD_WEPK4212x.pdf) from Siemens Industry Support.

Key Takeaways

For the Siemens WEPK4212 meter center, use only these approved breaker families:

QN, QNH, QNHH, HQN
QP, QPH, HQP, HQPH
MP-T, MP-HT, MP-MT

QN breakers (including the popular QN2200 and QN2200R) are compatible with this model. QP and QS2200 series are also suitable options depending on the application.

Following the manufacturer’s approved list, using the right part numbers, and following proper installation practices ensures a safe, code-compliant job, preserves the UL listing, and helps you pass inspection the first time.
