Descripción

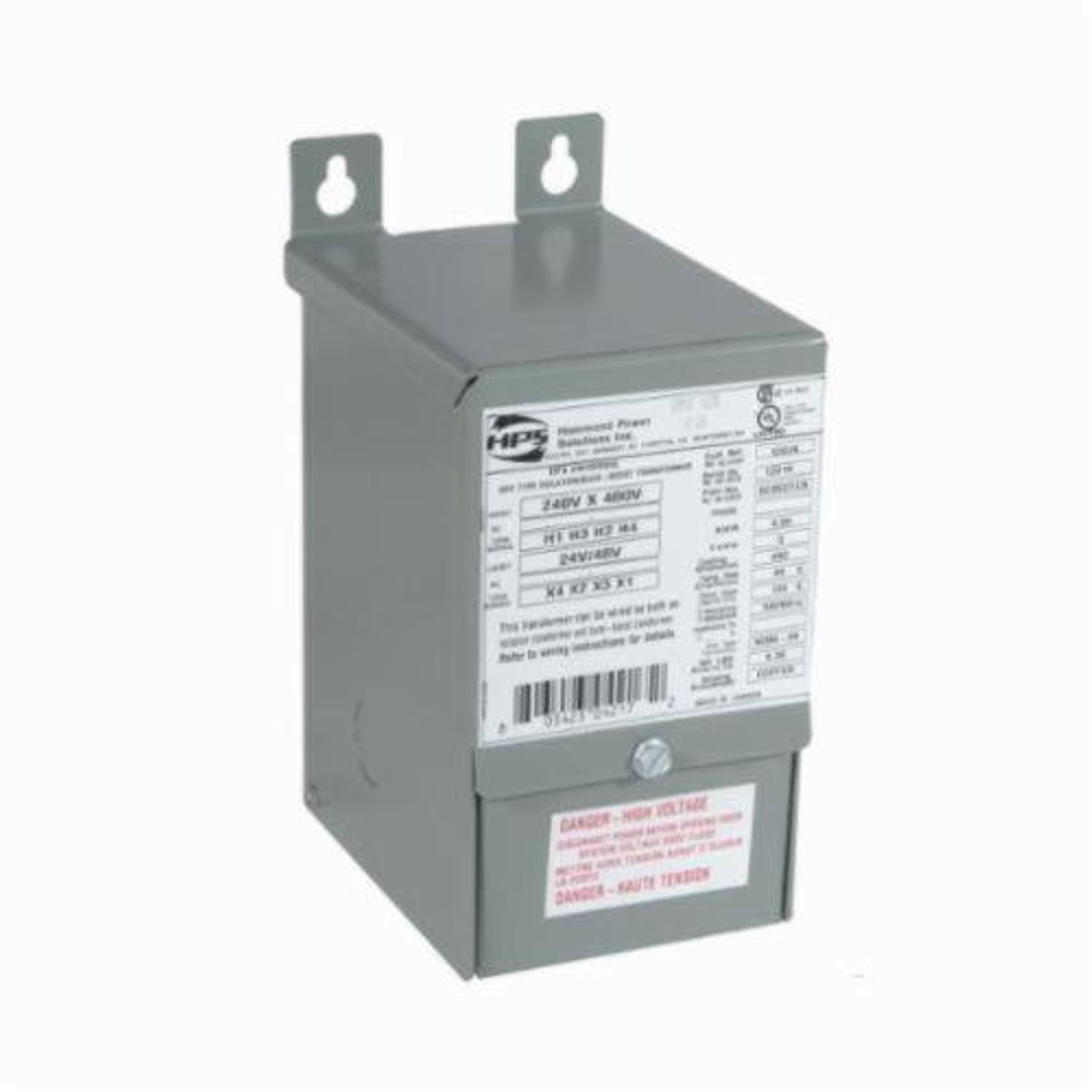

Unlock the power of HPS Universal Buck Boost Transformer, your go-to solution for seamless electrical control. This commercial encapsulated transformer boasts the following key features:
Specifications:
- Brand: Hammond Power Solutions
- Connection Type: Lead Wire/Tab
- Dimensions: 7-1/4 in H x 3-3/4 in W x 5-1/4 in D
- Enclosure Type: NEMA 3R
- Frequency Rating: 50/60, 50/60 Hz
- Insulation: 130, 130 deg C
Additional Features:
- Mounting Type: Wall
- Phase: 1
- Power Rating: 50, 50 VA
- Primary Voltage: 120/240 VAC
- Secondary Voltage: 12/24 VAC
- Temperature Rating (Degrees F): 30, 30 deg C
- Type: Commercial Encapsulated
- UNSPSC: 39121027
- UPC: 00803423042189
Item Description:
- Copper Winding: Ensuring top-notch conductivity.
- Economical and Efficient: Designed for cost-effectiveness without compromising performance.
- Compact Design: Smaller and lighter than general-purpose step-down transformers.
-
Versatile Usage:
- Isolation Transformer: Ideal for low voltage lighting, machine tool circuits, relays, bells, small motors, and solenoids.
- Buck-Boost Transformer: Corrects line voltage problems ranging from 5% to 25% above or below the nominal voltage.
-
High-Quality Construction:
- All Welded Core: Constructed with high-quality, high-permeability silicon steel laminations.
- Computer-Designed Coils: Accurately wound with optimum mean turns using high-quality magnetic wire with insulation foil.
-
Convenient Access:
- Front Accessible Wiring Compartment: Simplifying installation with high and low voltage copper lead wires or tabs.
- Durable Finish: ANSI 61 UL 50 gray enclosure finish for longevity.
- Maximum Operating Temperature: 40 deg C
Additional Description:
- Model: HPS-QC05ERCB BK 1PH 0.05KVA 240-24 CU CU
- Catalog Description: Buck-Boost Transformer, 120x240 PV, 12x24 SV
Embrace the excellence of Hammond Power Solutions QC05ERCB, the transformer that delivers on performance, efficiency, and reliability. Make informed decisions for your electrical needs with the assurance of quality and innovation.
